Hypertherm Powermax45 SYNC Plasma Cutter
Hypertherm Powermax45 SYNC Plasma Cutter
Model 088560 · Hypertherm
45 A plasma cutter, 200–240V, 5/8 in. rated cut, severs 1-1/8 in., 31 lb.
| Input | 200–240V single-phase; NEMA 6-50P plug |
| Output | 45 A; 50% duty cycle at 45 A |
| Rated cut | 5/8 in. at 20 ipm |
| Sever cut | 1-1/8 in. at 5 ipm |
| Air | 400 scfh (6.7 scfm) at 90 psi |
| Weight | 31 lb with 20 ft torch |
Online ordering opens soon
Leave your email and we'll tell you when this machine can be ordered. Questions about power, shipping or fit? Ask us now.
Call (919) 555-0147Mon–Fri 8–5 Eastern
- Shipping: Parcel or freight depending on weight; we'll confirm it before you order.
- Returns, freight and warranty for this machine
Our take
The Powermax45 SYNC is a 45 A hand plasma cutter that cuts 5/8 in. steel at a usable speed and severs 1-1/8 in. It runs on a 240V welder circuit and shop air.
Instead of a separate electrode, swirl ring, nozzle and shield, it uses one-piece SmartSYNC cartridges. The torch reads the cartridge and sets the mode and amperage, and you adjust amps right on the torch handle.
Plan your air before you buy: it needs about 7 scfm at 90 psi, clean and dry.
Before you buy
Will it run in your shop?
- 240V single-phase only. There is no 120V version of this machine.
- Ships with a NEMA 6-50P plug; Hypertherm specifies a 50 A time-delay breaker.
- Generator: 12.5 kVA (10 kW) for full output. Do not run on a phase converter.
What's in the crate
- Powermax45 SYNC power supply
- 75° SmartSYNC hand torch with 20 ft lead
- Work clamp with 20 ft lead
- One 45 A drag-cutting cartridge
- Power cord with NEMA 6-50P plug
- Gas inlet fitting
- Getting Started guide and safety documents
What else you'll need
- Air compressor that keeps up with about 6.7–7.5 scfm at 85–90 psi
- Air filter or dryer for clean, dry air
- 240V 50 A circuit with 6-50R receptacle
- Shade 5–8 face shield or glasses, gloves
- Spare SmartSYNC cartridges
Size, weight and shipping
- Parcel or freight depending on weight; we'll confirm it before you order.
Full specs
Hypertherm model 088560
| Spec | Value |
|---|---|
| Configuration | CSA power supply, 75° SmartSYNC hand torch, 20 ft lead |
| Input voltage | 200–240V, single-phase, 50/60 Hz |
| Input current at rated output | 40 A at 200V; 33 A at 240V |
| Duty cycle | 50% at 45 A; 100% at 32 A |
| Rated cut | 5/8 in. at 20 ipm |
| Heavier cut | 7/8 in. at 10 ipm |
| Sever cut | 1-1/8 in. at 5 ipm |
| Pierce | 1/2 in. |
| Gas | Air or nitrogen; clean, dry, oil-free |
| Air flow | 400 scfh (6.7 scfm) at 90 psi |
| Consumables | One-piece SmartSYNC cartridge; torch sets mode and amps |
| Power cord | 10 ft with NEMA 6-50P plug |
| Dimensions | 17.4 in. D x 6.8 in. W x 14.1 in. H |
| Weight | 31 lb with 20 ft torch |
Specs come from the manufacturer's current spec sheet. If something here doesn't match the plate on your machine, call us.

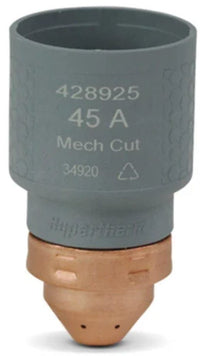

Consumables and parts for this machine
The wear parts you'll reorder, so you're not hunting part numbers later.
Freight, returns and warranty
Freight and delivery
Machines over about 150 lb ship by freight truck to the curb; smaller ones ship by parcel carrier. For freight, the carrier calls to set a delivery window, and liftgate and residential delivery can be added to your order. Inspect the crate before you sign, note any damage on the delivery receipt, and report it within 48 hours. We file the freight claim.
Returns
Return terms for this machine are set by the manufacturer and confirmed before you order. Returns need a return authorization. Non-defective returns carry a restocking fee and return freight.
Warranty
Hypertherm: 6 years or 500,000 starts on the power supply; 1 year on the torch and leads
Manufacturer warranty terms are linked below. Some brands only cover machines bought from an authorized dealer, so we'll confirm coverage on this machine before you order. If something goes wrong, we'll help you start the claim.
